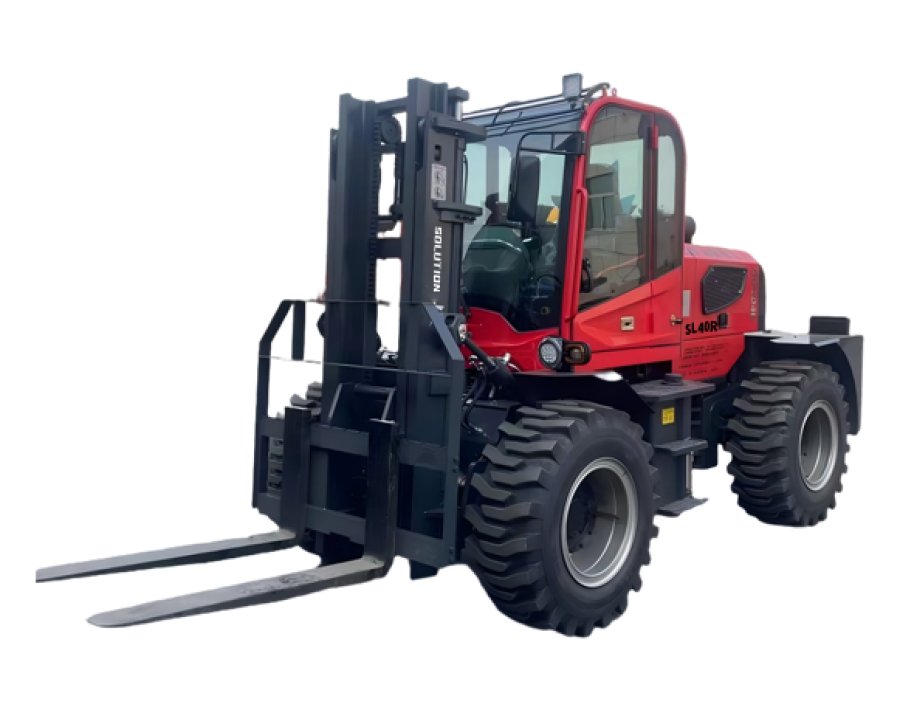

The rear articulated off-road forklift is a new series of articulated off-road forklifts independently developed on the basis of the original products. Through comprehensive upgrades in appearance, safety, comfort and reliability, the performance of the whole vehicle has been greatly improved compared with the original products.
Engine:Yunnei CN-2, 65 kW
Fork Length: 1.22 m
Lifting Height: 2 Stage, 3 m
Rated Load: 4000 kg
By adopting heavy-duty wheel hub reduction gears, the load-bearing capacity is enhanced and the braking and deceleration performance is improved.
The articulated structure is combined with large-sized tires, enabling it to maintain stability even on muddy and uneven terrains, and it has excellent driving performance.
The turning is not restricted by the vehicle body, allowing for closer operation near the cargo piles or walls, thereby reducing space waste.
The hydraulic-assisted articulation system ensures that the steering remains smooth even under heavy loads, thereby reducing the operational effort.
It can be used in various scenarios such as factory workshops, outdoor construction sites, and farm warehouses, and has strong versatility.
The hinged parts are made of high-strength alloy material, ensuring the structural stability even during high-frequency steering operations.
The hinged structure is simple in design, facilitating daily inspection and maintenance, and reducing maintenance costs.
The gantry is designed with a wide body, providing better visibility and a more comfortable driving experience.
| Engine model | yunnei 4100Turbo | |
| Engine Power | Kw | 65 |
| Rated load | KG | 4000 |
| machine weight | KG | 5300 |
| Lifting height | m | Standard 3m(3-6m can be customized) |
| Size(L*W*H) | mm | 3800*2000*2600 |
| Wheelbase | mm | 2300 |
| Gearbox | Jinlite 265 torque converter | |
| Forklength | mm | 1220 |
| Min.Turning radius | mm | 3800 |
| Gear | transmission (dual high and low speed with running gear) | |
| Max.speed | 30Km/h | |
| Max.climbing angle | <35° | |
| Braking | Air brakes(four-wheel disc brakes) | |
| Tire size (front/rear) | 16/70-20 | |
| Axles | Heavy cast steel large wheel side bridge | |
