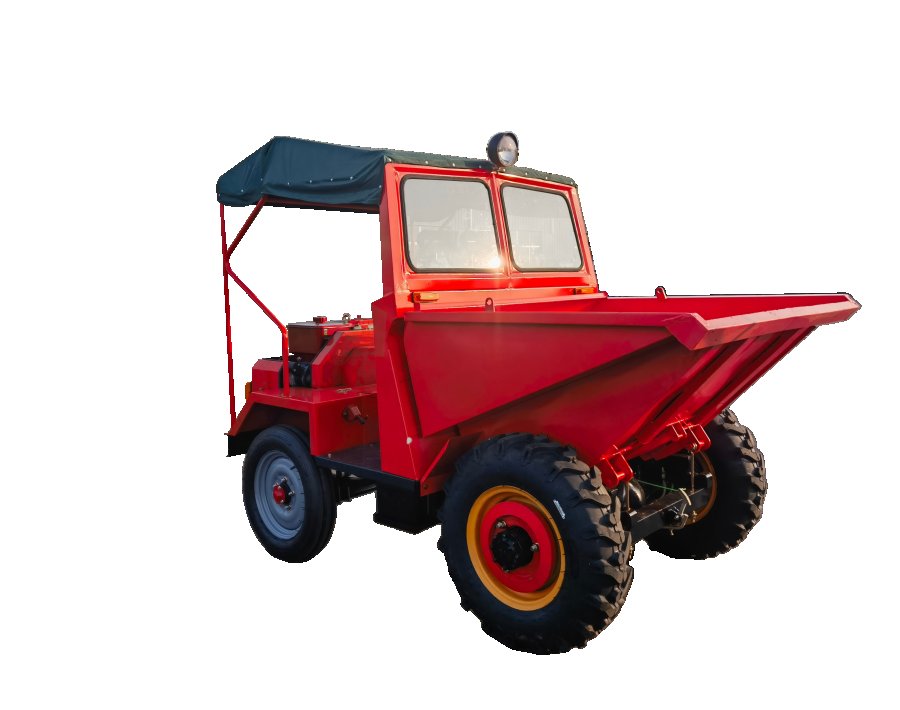

SLF15 SITE DUMPER

SOLUTION

SLF15 SITE DUMPER

The SLF15 site dumper is designed for efficient material transport on construction sites, farms, factories, and other confined working areas. With a rated load capacity of 1,500 kg, a 0.622 m³ dump body, and a compact turning radius, it offers strong carrying performance, flexible operation, and efficient hydraulic unloading.

Technical Parameter

Engine: 1100 diesel engine
Rated load capacity: 1,500 kg
Dump body capacity: 0.622 m³

Inquire now

Product details

Parameter	Specification
Model	SLF15
Overall Dimensions (L × W × H)	2650 × 1410 × 1400 mm (height to steering wheel)
Overall Dimensions with Canopy (L × W × H)	2650 × 1410 × 2000 mm
Dump Body Capacity	0.622 m³
Wheelbase	1450 mm
Front Track Width	1230 mm
Rear Track Width	1300 mm
Operating Weight	760 kg
Rated Load Capacity	1500 kg
Minimum Ground Clearance	165 mm
Loading Height	1200 mm
Maximum Travel Speed	28 km/h
Minimum Turning Radius	< 3.5 m
Diesel Engine Model	1100
Rated Power	12.1 kW
Rated Speed	2200 r/min
Type	Basic Model
Front Tire Size	7.50-16
Rear Tire Size	5.50-16 (5.00-16)
Axle Configuration	Front Drive Axle and Rear Steering Axle
