SLF10 SITE DUMPER

SOLUTION

SLF10 SITE DUMPER

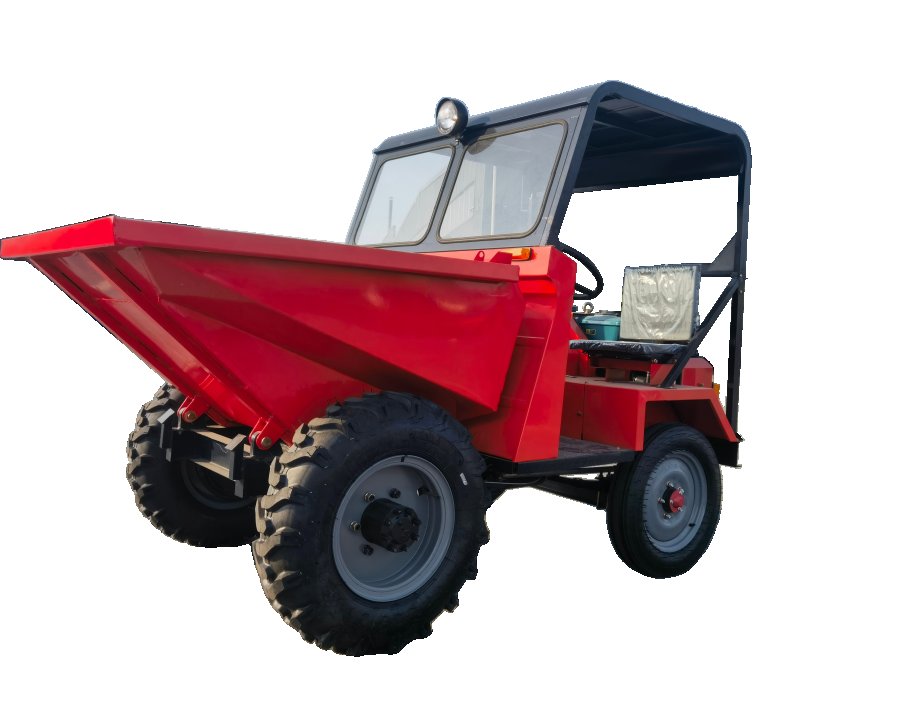

The SLF10 site dumper is a compact and practical material-handling machine designed for construction sites, farms, factories, and other confined working areas. With a rated loading capacity of 1,000 kg, a front drive axle, rear-wheel steering, and a hydraulic tipping bucket, it offers flexible operation, a small turning radius, and efficient loading and unloading performance.

Technical Parameter

Engine: 1100 diesel engine
Rated load capacity: 1,000 kg
Dump body capacity: 0.467 m³

Inquire now

Product details

Parameter	Specification
Model	SLF10
Overall Dimensions (L × W × H)	2600 × 1460 × 1400 mm (height to steering wheel)
Overall Dimensions with Canopy (L × W × H)	2600 × 1460 × 2000 mm
Dump Body Capacity	0.467 m³
Wheelbase	1450 mm
Front Track Width	1235 mm
Rear Track Width	1300 mm
Operating Weight	745 kg
Rated Load Capacity	1000 kg
Minimum Ground Clearance	165 mm
Loading Height	1070 mm
Maximum Travel Speed	28 km/h
Minimum Turning Radius	< 3.5 m
Diesel Engine Model	1100
Rated Power	12.1 kW
Rated Speed	2200 r/min
Type	Basic Model
Front Tire Size	7.50-16
Rear Tire Size	5.50-16 (5.00-16)
Axle Configuration	Front Drive Axle and Rear Steering Axle
