The engine provides higher torque and overload recovery function, improves operating comfort and headroom, and can complete similar work with the same power at lower speed, lower noise and lower fuel consumption.
Engine: XINCHAI, National II Emission Standard,37kw
Rated load: 700Kg
Hydraulic system: Mechanical pilot
Closed cab, spacious space, more convenient to drive.
With double handles for walking and operation control, it is easier to use.
Zero turning radius design, turning in place in narrow space, easy operation in warehouse, workshop and other restricted sites.
The quick-change device supports the minute-level replacement of dozens of accessories such as digging buckets
, forks and hammers, and the switching operation is seamless.
The reinforced frame is equipped with a high-torque engine, which can efficiently complete heavy-duty handling and stacking tasks in a narrow space.
Low grounding specific pressure design, with rubber track or anti-skid tire, it will not damage the foundation when working on sensitive ground such as lawn and floor tile.
Intuitive joystick + intelligent assistant system, the novice can operate skillfully in a short time, lowering the training threshold.
Load-sensitive hydraulic system distributes power on demand, and the fuel consumption of the same workload is more than 15% lower than that of traditional models.
Category | Specification |

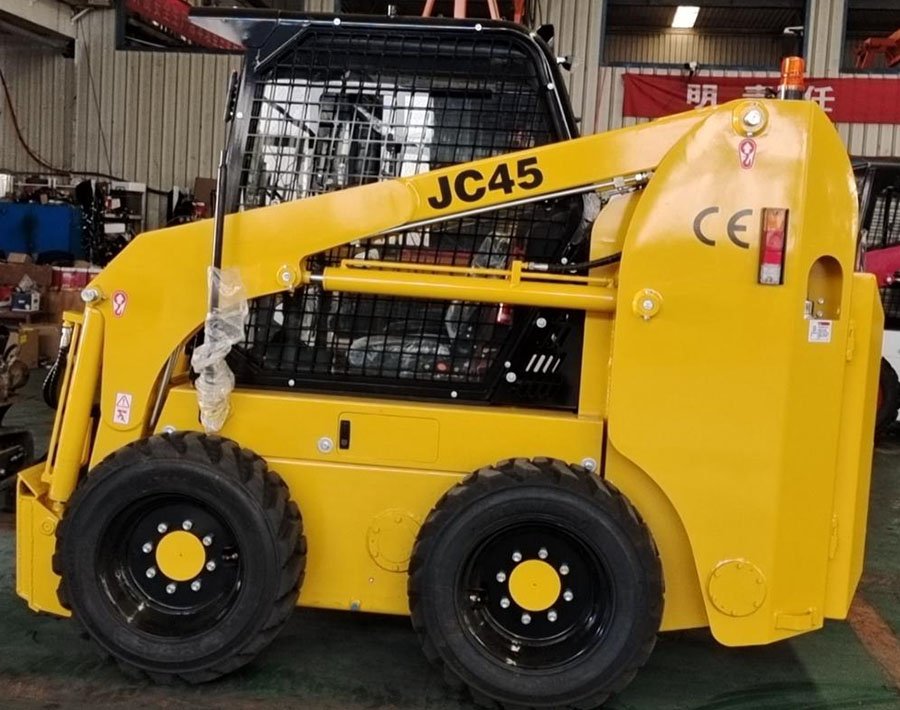

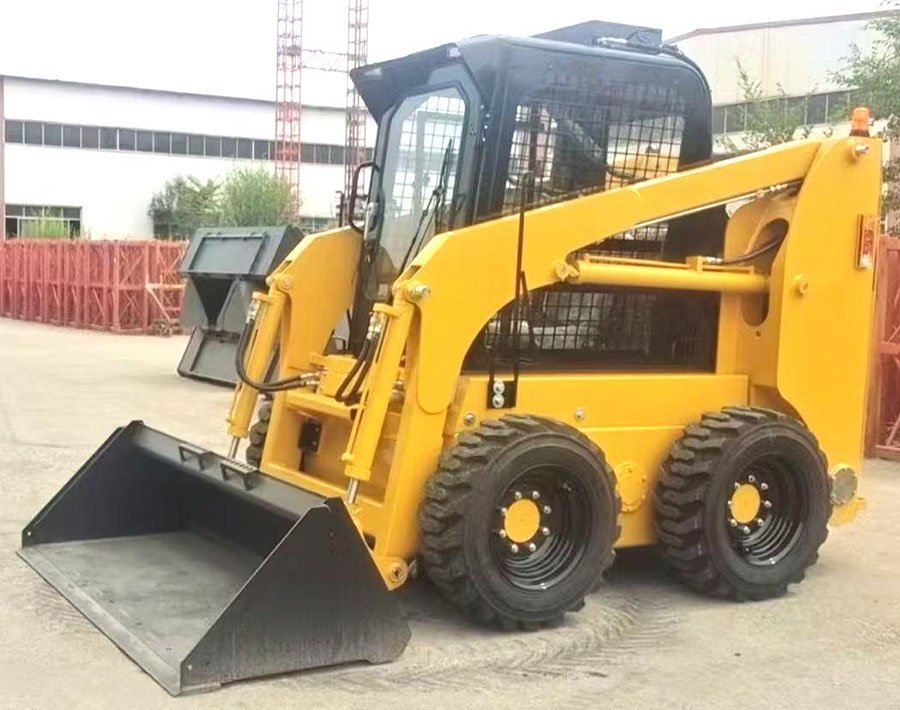

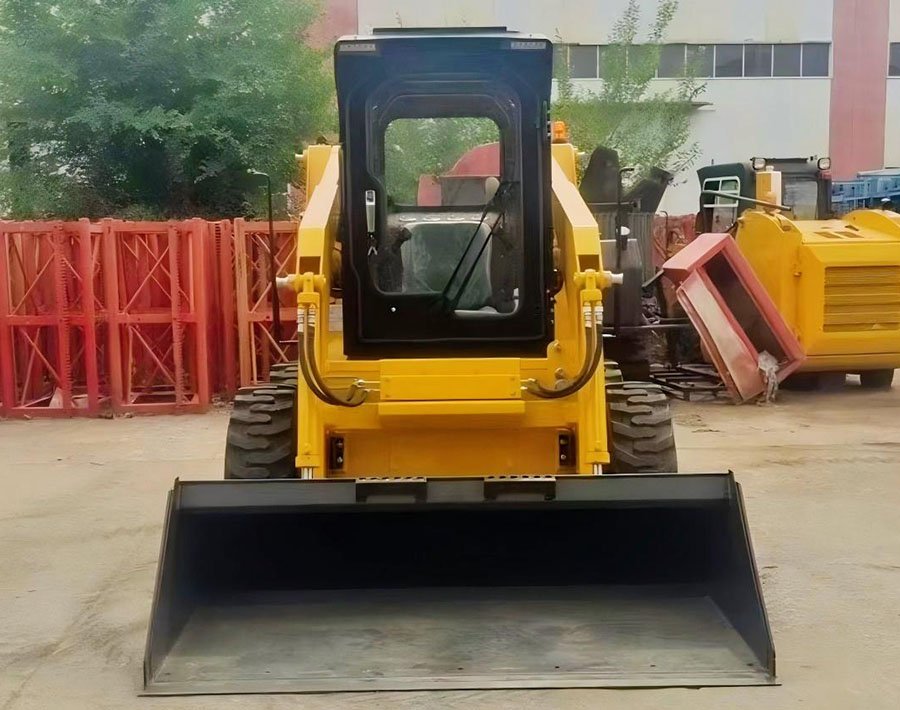

Model | JC45 |
Operating Load | 700 kg |
Max Speed | 12 km/h |
Rated Flux | 62.5 L/min |
High Flow Flux | — |
Tire Model | 10-16.5 |
Rated Power | 37 kW |
Fuel Tank Capacity | 70 L |
Operating Weight w/ Bucket | 2700 kg |
Bucket Capacity | 0.4 m³ |
Overall Operating Height | 3980 mm |
Height to Bucket Hinge Pin | 3080 mm |
Height to Top of Cab | 2140 mm |
Height to Bottom of Level Bucket | 2913 mm |
Length without Bucket | 2640 mm |
Length with Bucket | 3420 mm |
Dumping Angle at Max Height | 40° |
Dumping Height | 2380 mm |
Dumping Reach | 700 mm |
Rollback Angle on Ground | 30° |
Rollback at Full Height | 104° |
Wheelbase | 991 mm |
Ground Clearance | 185 mm |
Angle of Departure | 20° |
Front Turning Radius w/o Bucket | 1168 mm |
Front Turning Radius | 1958 mm |
Rear Turning Radius | 1630 mm |
Rear Overhang | 1108 mm |
Tread Width (standard tire) | 1450 mm |
Machine Width (standard tire) | 1720 mm |
Bucket Width (standard) | 1740 mm |
