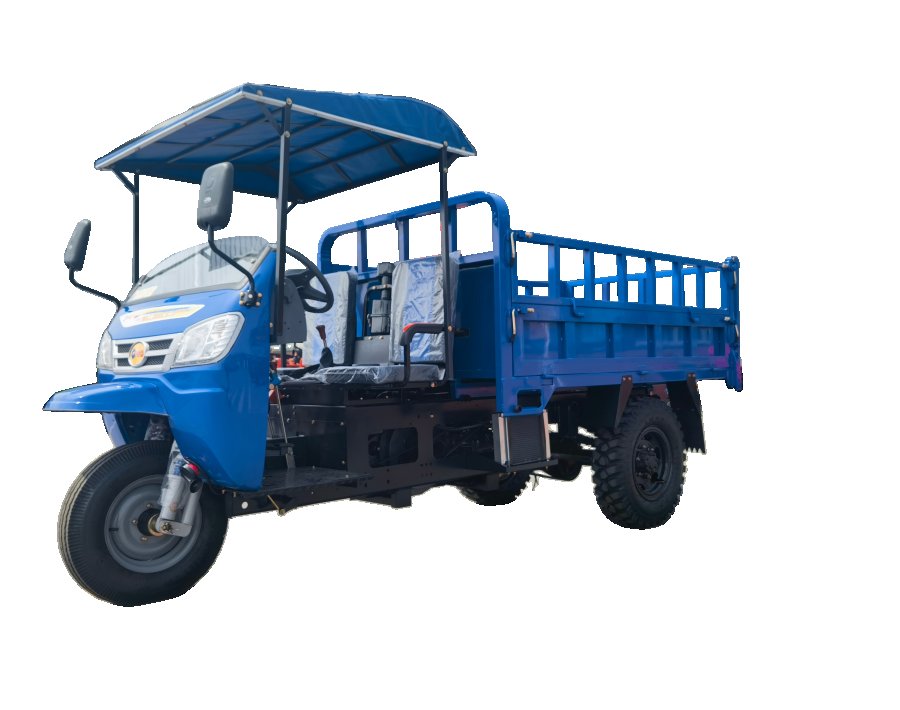

SLF304 Three-Wheel Dump Tricycle

The SLF304 three-wheel dump tricycle is designed for efficient material transportation on farms, construction sites, and narrow working areas. Equipped with a 22 HP diesel engine, an 8-speed transmission, vacuum-assisted braking, and a self-dumping cargo box, it offers strong power, reliable performance, easy operation, and high unloading efficiency.

Technical Parameter

Engine: 22 HP diesel engine, China IV
Cargo box size: 2500 × 1450 × 450 mm
Max. travel speed: 45 km/h

Inquire now

Product details

Parameter	Specification
Model	SLF304
Cargo Box Dimensions (L × W × H)	2400 × 1500 × 350 + 350 mm with mesh extension; or 2500 × 1500 × 450 + 270 mm with double-layer side panels
Overall Dimensions (L × W × H)	4100 × 1500 × 1850 mm
Axle	Heavy-Duty 8-Speed Axle
Diesel Engine	Changchai 22 HP Diesel Engine
Front Tire	6.00-14 Huhe Tire
Rear Tire	7.00-16 Huhe Tire
Steering System	Offset Steering System, with Optional Square or Steel Housing
Cooling System	Radiator Water-Circulation Cooling System
Braking System	Vacuum-Assisted Braking System
Seat	Double Seat
Frame Type	Offset Outboard Frame with Automotive-Grade Chassis Beam; Beam Width: 180 mm; Steel Plate Thickness: 5 mm
Leaf Spring	15-Leaf Spring
Dumping Method	Hydraulic Self-Dumping
Maximum Travel Speed	45 km/h
Paint Finish	Electrostatic Powder Coating with High-Temperature Baking Finish
