The new generation of fully hydraulic wheel excavators independently developed and manufactured have many advanced technologies, high quality and high cost performance.
Engine: Cummins CN-2, 97 kW
Whole machine weight: 13,500 kg
Hydraulic System: Hydraulic pilot
The maximum speed of the special research technology gearbox can reach 40km/H.
The tire type design does not need trailer transportation, the road driving speed is fast, the cross-site operation saves a lot of time, the rubber tire has little damage to the hardened pavement, and the operation in municipal roads and factories does not need additional repair of the pavement.
The turning radius is small, and the operation position can be quickly adjusted in narrow places such as streets and factories, and the shuttle is free.
Support the replacement of breaking hammers, hydraulic shears and other accessories, taking into account both excavation and special operations, one machine has strong versatility.
The shock absorption design of the cab is better, the bumpy feeling of road driving is weak, and the fatigue of the driver working for a long time is low.
The structure of the wheeled traveling mechanism is relatively simple, the maintenance items are few, and the daily maintenance cost is lower than that of the crawler type.
Equipped with hydraulic pilot control system, the action responds quickly, and fine operations such as pipeline excavation and material stacking are more handy.
Gear pump and plunger pump cooperate with each other, fuel consumption is lower, equipped with self-developed drive axle, balance, stability, off-road ability is stronger.

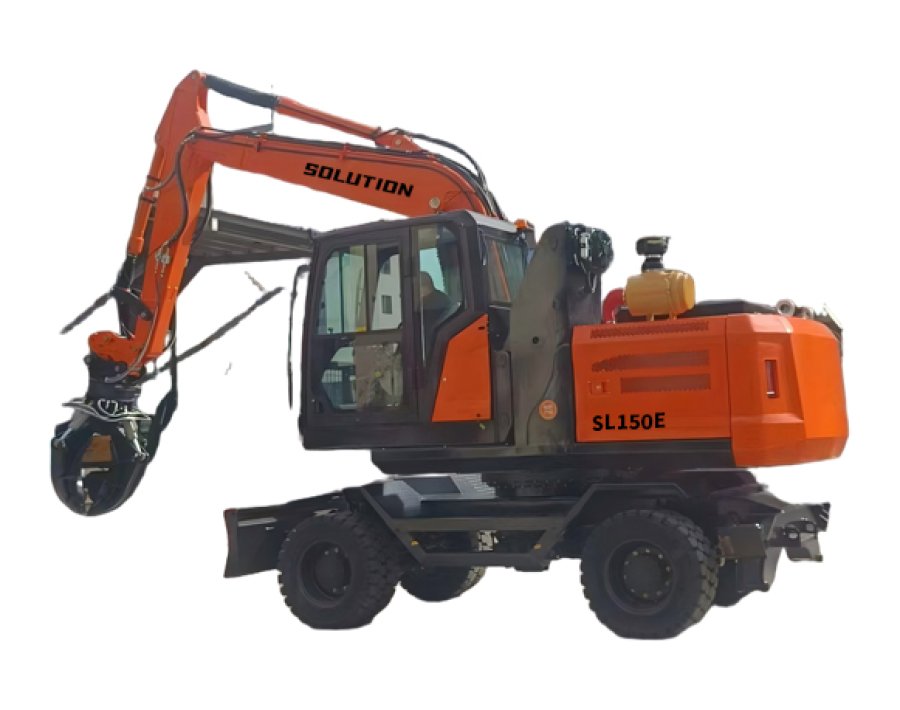

Model | SL150E |
Range of operation | |
Boom length | 4500mm |
Amlength | 2200mm |
Max.digging reach | 7900mm |
Max.diging depth | 4600mm |
Max.verticalmining depth | |
Max.diging force | 90KN |
Max.digging height | 8400mm |
Max.clip radius | |
Max.opening width offixture | |
Min.openingwidthofixture | I |
Max.radiusclip weight | \ |
Rotatable angle ofthe fixture | |
Max.dumping height | 6450mm |
Back-end radius of gyration | 2250mm |
Dimensions | |
(Length*width*height) Transport dimensions | 7500*2500*3000 mm |
Axle base | 2750mm |
Wheel base (front/rear) | 1900mm |
Ground clearanceofcounterweight | 1260mm |
Min.ground clearance | 310mm |
Drive axle | \ |
Tech performance and specification | |
Angle of rotation | 360° |
Machine weight | 13500kg |
Engine model | Cummings (National Stage II) |
Rated power | 97KW |
Rated speed | 2200r/min |
Hydraulic system working pressure | 32Mpa |
Hydranlic system flow | 290L/min |
Meteringearpump | \ |
Variable piston pump | 2*63m/r |
Max.haulingforce | 76.5KN |
Grapple swingspeed | \ |
Walking speed | 28km/h |
Grade climbing ability | 58%/30° |
Tyre model | 900-20 |
Volume of bucket | 0.56m³ |
Swingoverload pressure | \ |
Fullcircle swingingtime | \ |
Fuelquantity | ≥6L/h |
Fueltankcapacity | 240L |
Hydraulicoiltankcapacity | 200L |
