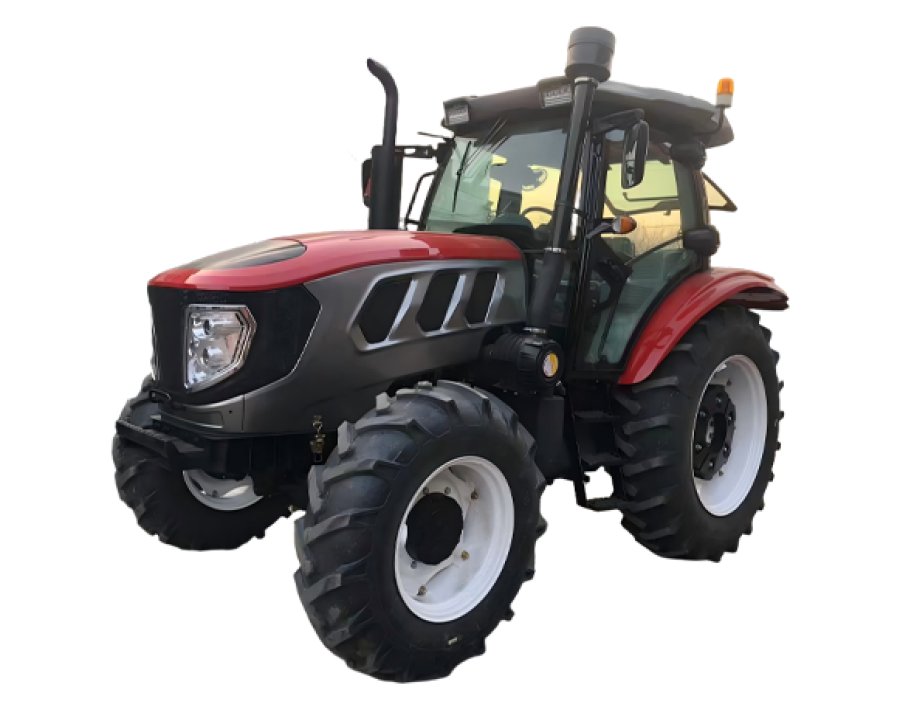

In order to meet the diversified product demands of the tractor market, the tractor products have been systematically upgraded, especially the new molds have been developed for the appearance, so that the new products have a distinctive new appearance.
Engine: Weifang CN-2, 160 HP
Whole machine weight: 4500 kg
Gearbox: 24F+8R
All-LED lamps are safer to drive at night, the streamlined hood is more beautiful, and the front end is equipped with a mechanical locking device so that the hood lock will not fail even on bumpy roads.
The whole vehicle is equipped with a large 12V battery, which has stronger starting ability without worrying about insufficient voltage, and can also be used externally for 12V to ensure the diversification of operation.
The rear end adopts a three-fulcrum universal bracket, which can use farm tools and operation equipment of various sizes, and can also be equipped with a trailer to transport small-tonnage goods.
The tractor adopts adjustable counterweights at both the front and rear in accordance with international standards. Customers can adapt to different weights and perform various operations as needed.
It can be equipped with fully enclosed cab, high-end interior structure, anti-roll design, upper suction design and air conditioning with filter element to make driving more comfortable and clean.
The molded plastic diesel tank has a more attractive design, a larger capacity, better endurance, and no impurities. It reduces the need for frequent diesel refills, and its more reasonable position design makes refueling more convenient and enhances the endurance.
The front and rear speed ratio of the 4 * 4 drive system is more reasonable, which makes its trafficability and towing ability stronger. When turning, the front wheel has better steering ability. At the same time, the cutting ability makes its 2 * 4 more economical and fuel-efficient.
The whole vehicle line is protected by waterproof plug and bellows, so there is no need to worry about the line failure caused by dampness in use, and at the same time, there is no fear of the problems caused by high temperature in the engine compartment.
Drive Type | 4WVD |
Engine | Huake/Huashen and other Weifang-based Engines 6108 Naturally Aspirated |
Engine Power | 113kW |
Clutch | Double-Acting Clutch |
PTO Speed | 760/850rpm |
Number of PTO Splines | 8 |
Rated Traction Force | ≥36KN |
Structural Weight | 4500kg |
Steering Type | Hydraulic Steering |
Hydraulic Output | Three Sets of Hydraulic Output |
Gear | 24+8 |
Speed Range | Forward 1h-55km Reverse 1h-30km |
Tire Model | 14.9-24/18.4-38 |
Wheelbase | 2450mm |
Overall Dimensions(L*W*H) | 4200X2100X3100 |
