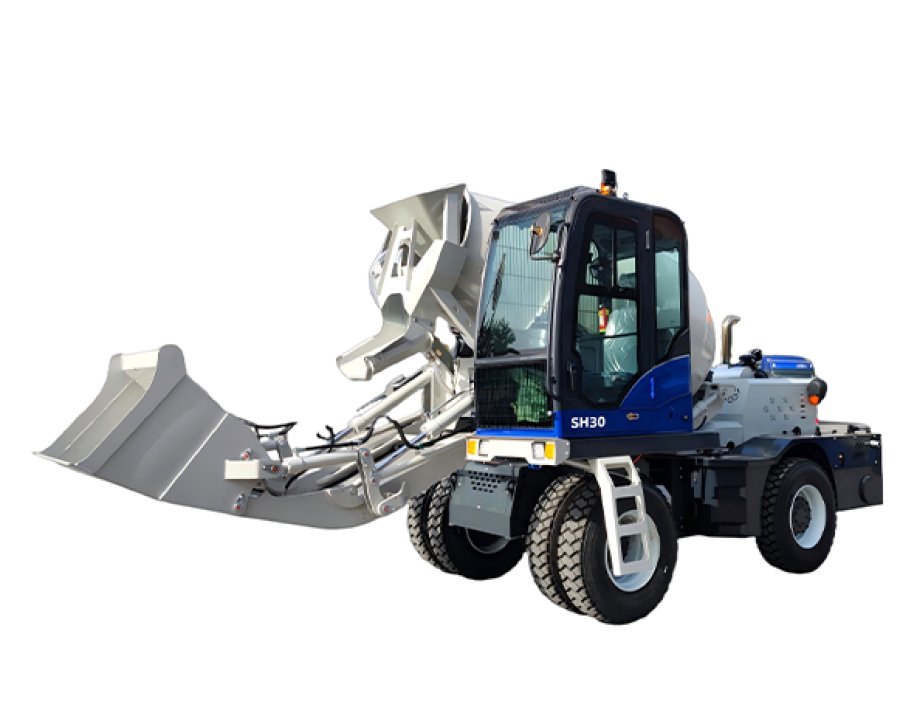

The self-loading concrete mixer truck has added the functions of loading, adding water, and transporting the materials to the construction site in addition to the original single mixing function of sand, gravel, and cement. It truly achieves the advantages of on-site construction and on-site mixing. The degree of automation and efficiency is very high, and one person can complete the driving of one device.
Engine: Yuchai, National II emission standard, 85kw
Valid output: 3m³
Water tank capacity: 750m³
By using a widened 15-centimeter-wide special bridge, the load-bearing capacity is greater and the stability is higher.
Enlarged water tank, allowing for carrying water to the destination for mixing concrete.
A 270° horizontal rotation of the platform enables easy and precise material discharge.
The vehicle is equipped with dual hydraulic oil tanks and a dual hydraulic system design, which can perform better under high-intensity usage conditions.
Using 12R22.5 vacuum tires, the pressure resistance is stronger and the application scenarios are wider.
Equipped with a telescopic discharge port, it can better extend to the concrete pump truck.
The Rexroth plunger pump that the concrete is mixed more thoroughly and evenly.
| Category | Specification |
| Model | SH30 |
| Geometrical drum volume | 5 m³ |
| Drum rotation speed | 20 r/min |
| Concrete produced per drum | 3 m³ |
| Engine type | Yuchai 4105 |
| Engine power | 85 kW |
| Overall dimensions (L×W×H) | 7600×2872×3374 mm |
| Curb weight | 8300 kg |
| Maximum speed | 35 km/h |
| Axle base | 2600 mm |
| Maximum gradeability | 40% |
| Drive form | 4×4 |
| Minimum ground clearance | 290 mm |
| Gearbox model | JBJ-320 |
| Gearshift | F4 / R4 |
| Engine oil capacity | 13 L |
| Hydraulic oil capacity | 120 L |
| Fuel tank | 120 L |
| Water tank | 750 L |
| Water supply | — |
| Reducer | 5F-300B |
| Motor | — |
