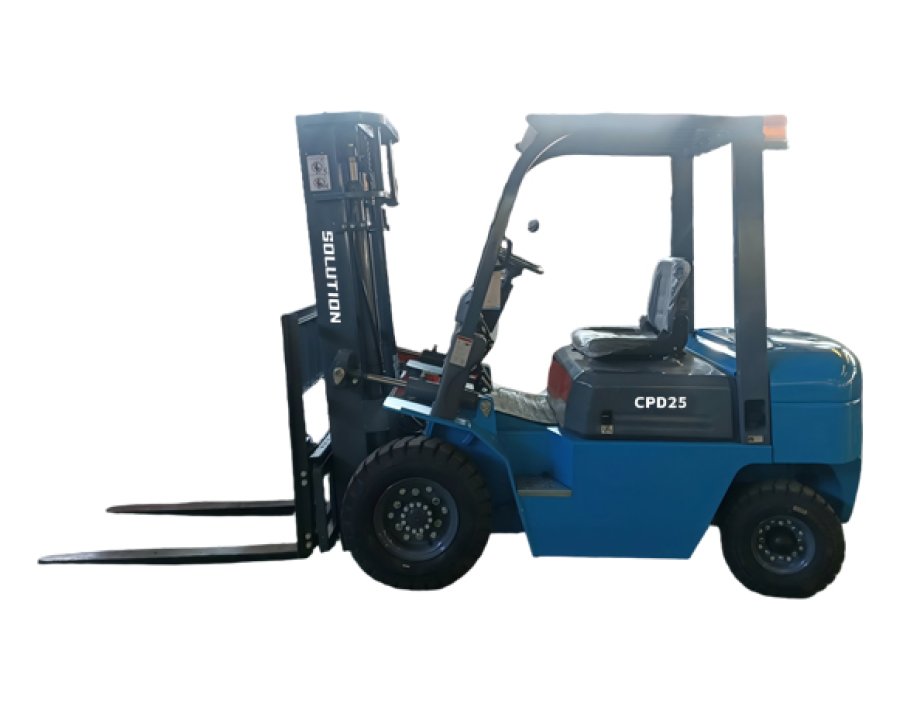

Low-voltage lithium battery special vehicles are a new series of products independently developed based on a deep understanding of electric forklifts and internal combustion forklifts, breaking through traditional design concepts, adopting standard architecture, and equipped with new energy platforms. This series of products breaks through people's perception of transmission electric forklifts, surpasses internal combustion forklifts in terms of efficiency, power, reliability, etc., and reinterprets the new generation of electric forklifts.
Motor: drive motor 8kw, oil pump motor 10kw
Fork length: 1.22m
Lifting height: 2 stage mast lifting up to 3m
Rated load: 2500kg
Two types of batteries are available for selection: lead-acid and lithium-ion. Pure electric drive produces no exhaust emissions, making it suitable for places with high cleanliness requirements such as food processing and pharmaceutical workshops. It also complies with environmental protection policies.
The noise generated by this motor is over 40% lower than that of the diesel model. It does not interfere with employees' communication during warehouse and workshop operations, thereby improving the working environment.
The charger is more flexible in terms of selection, supporting voltages ranging from 220V to 380V. The selectable voltage range is wide, resulting in higher charging efficiency.
The noise generated by this motor is over 40% lower than that of the diesel model. It does not interfere with employees' communication during warehouse and workshop operations, thereby improving the working environment.
There is no need to replace the oil, filter elements, etc., which are easily worn out. The maintenance items have been reduced by 60%, and the annual maintenance cost has decreased by approximately 5,000 yuan.
The battery capacity has been upgraded, enabling a maximum runtime of 8-10 hours. Coupled with the fast charging function, it is also capable of handling short-distance outdoor transportation.
Equipped with battery level monitoring, overload protection and automatic speed limiting functions, it reduces the safety risks caused by operational errors.
The optimization of battery layout reduces the turning radius and makes operations in narrow passages or between high-rise shelves more convenient.
Item | Specification |
Power Type | Lithium battery |
Rated Lifting Load | 2500 KG |
Load Center Distance | 500 mm |
Driving Mode | Seat driving |
Length (with/without fork) | 3650 mm / 2580 mm |
Width | 1170 mm |
Height (mast not raised) | 2070 mm |
Overhead Guard Height | 2070 mm |
Wheelbase | 1600 mm |
Front Overhang | 477 mm |
Rear Overhang | 494 mm |
Minimum Ground Clearance | 110 mm |
No-load Maximum Lifting Height | 3000 mm |
Free Lifting Height | 160 mm |
Minimum Turning Radius (outer side) | 2050 mm |
Mast Tilt Angle (front/rear) | 6°/12° |
Forklift Weight (standard no-load condition) | 3700 kg |
Tire no. (F/R) | 2025/2/2 |
Tire Type (F/R) | Air inflation tire |
Tire Size (F) | 7.00x12,12PR |
Tire Size (R) | 6.00x9.10PR |
Brake/Service Brake | Power brake-pedal |
Parking Brake | Mechanical-manual |
Lithium Battery Voltage | 76.8 V |
Lithium Battery Capacity | 175 A |
Traveling Motor | 11 kw |
Lifting Motor | 12 kw |
Control Mode | AC |
