We develop and manufacture self-propelled sprayers suitable for wheat, sweet potatoes, potatoes, peppers and most vegetable crops, and have many design patents. The equipment has high climbing performance, large liquid capacity, wide spraying width, moderate height, and stable walking. It can be used for spraying, fertilizing, short-distance transportation, paddy field seedling transportation, etc.
Horsepower: 102
Medicine tank capacity: 2000L
Spray boom size: 24 meters in length
The diameter of the tire is larger and the width of the tire is narrower, which is convenient for walking between the gaps of the crops and reduces the damage to the crops.
The all-frame body design ensures that the vehicle remains stable even on bumpy roads under heavy loads.
Super-large water tank, with ultra-long continuous operation, no need to frequently add medicine solution.
When the spraying frame is unfolded, it can spray a large area of pesticides, ensuring that they are evenly distributed on the crops. During the movement of the site, the spraying frame can be quickly folded up for flexible site relocation.
Fully enclosed cab, equipped with single-piece large glass, better driving vision, optional air conditioning and heating to make it more comfortable.
Equipped with highly refined nozzles, it enables the drugs to be fully atomized, thus facilitating better sowing operations.
The LED light source of the whole vehicle makes it safe to drive at night, with higher light penetration and wider illumination range.
Equipped with a storage-type ladder, it makes it more convenient for the drivers to get into the vehicle, and the ladder will not cause any obstruction during operation.

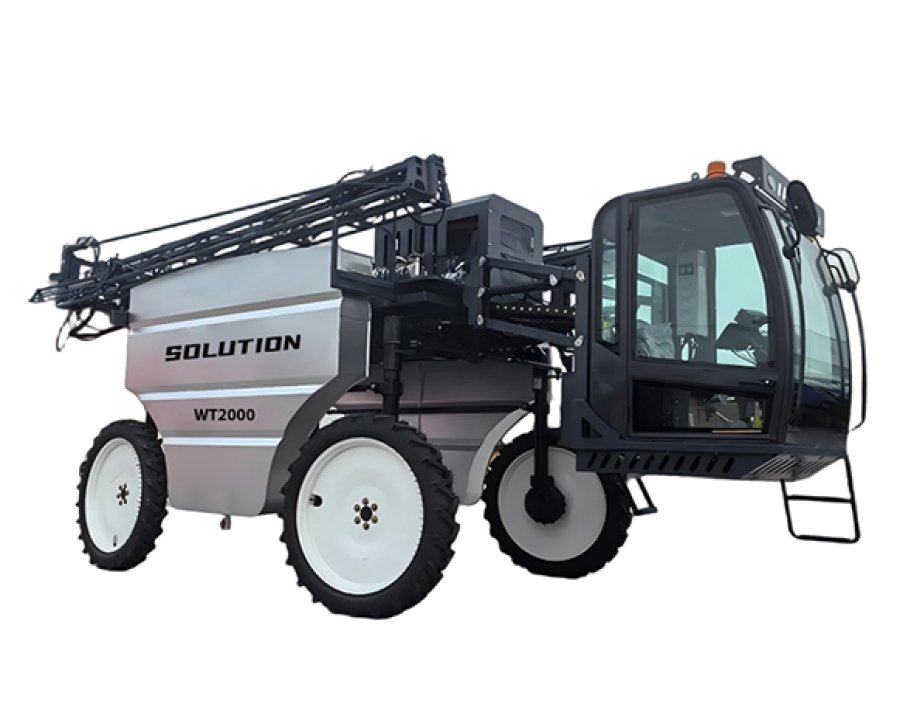

Model | WP2000 |
Gear | 5 forward gears and 1 reverse gear |
Steering/Drive | Four-wheel steering / Four-wheel drive |
Tire Size | 1.4m high, 16cm wide |
Chemical Tank Capacity | 2000(L) |
Hydraulic Pump Model | 4180 4-Cylinder Diaphragm Pump |
Working Pressure | 0.3-2.0mpa |
Filtration System | Five-stage filtration |
Spray Boom Folding | Licheng Special-Purpose Spray Nozzle |
Overall Dimensions | Length 7m, width 2.7m, height3.2m |
Power | Diesel engine, 102 horsepower |
Operating Speed | 6-8 km/h |
Traveling Speed | 0-30km/h |
Wheelbase | 2.2m-2.6m |
Chemical Tank Material | Engineering plastic |
Liquid Pump Flow Rate | 80 liters per minute (L/min) |
Agitation Method | Internal barrel back-jet mixing agitation |
Chemical Arm Lifting and Lowering | Hydraulic lifting |
Spray Nozzle | 110° fan shape |
