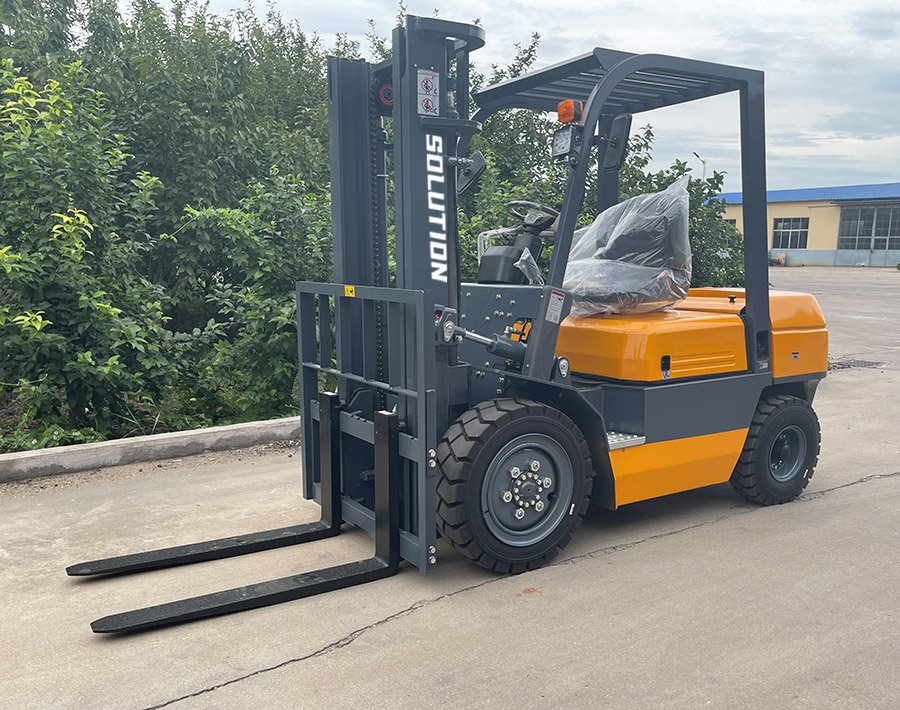

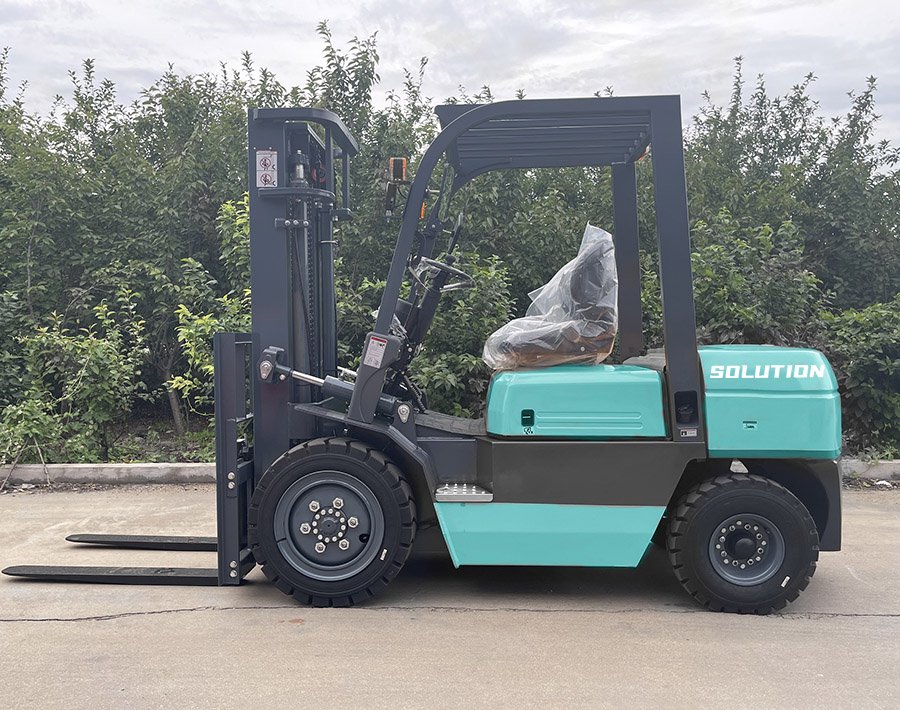

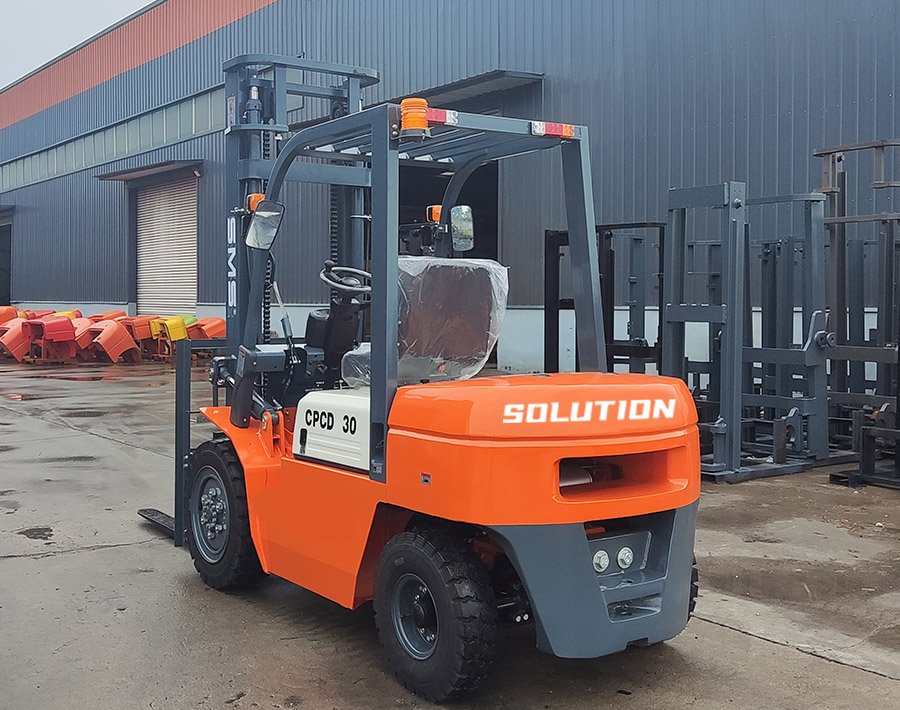

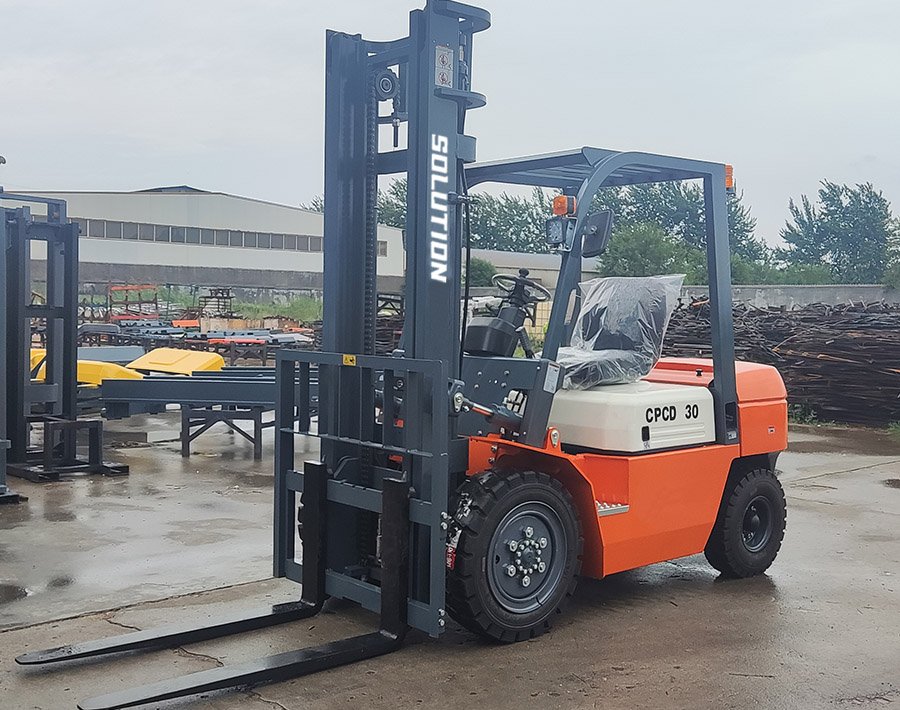

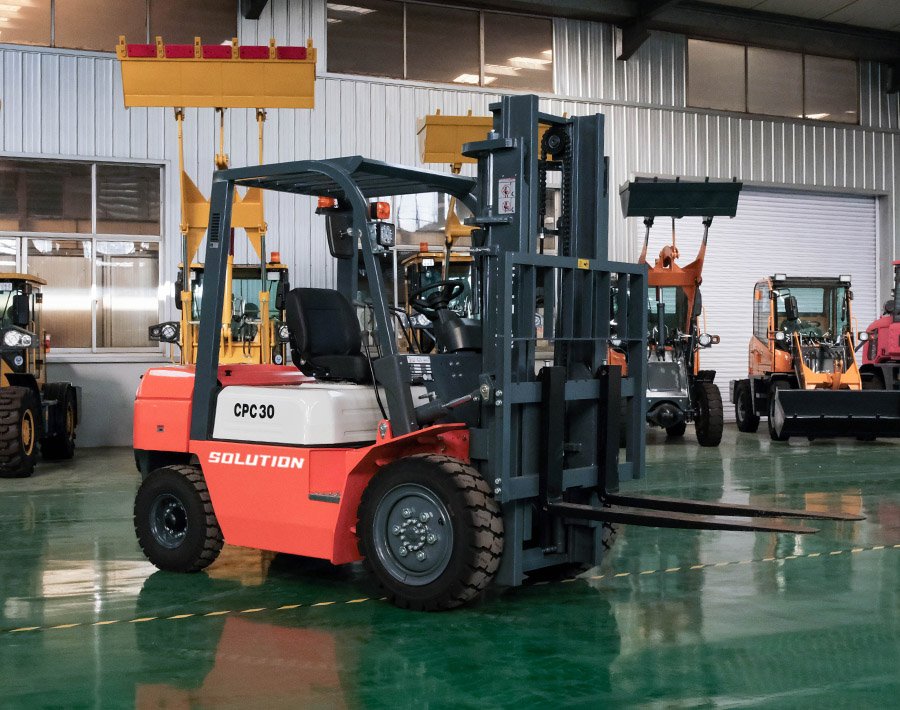

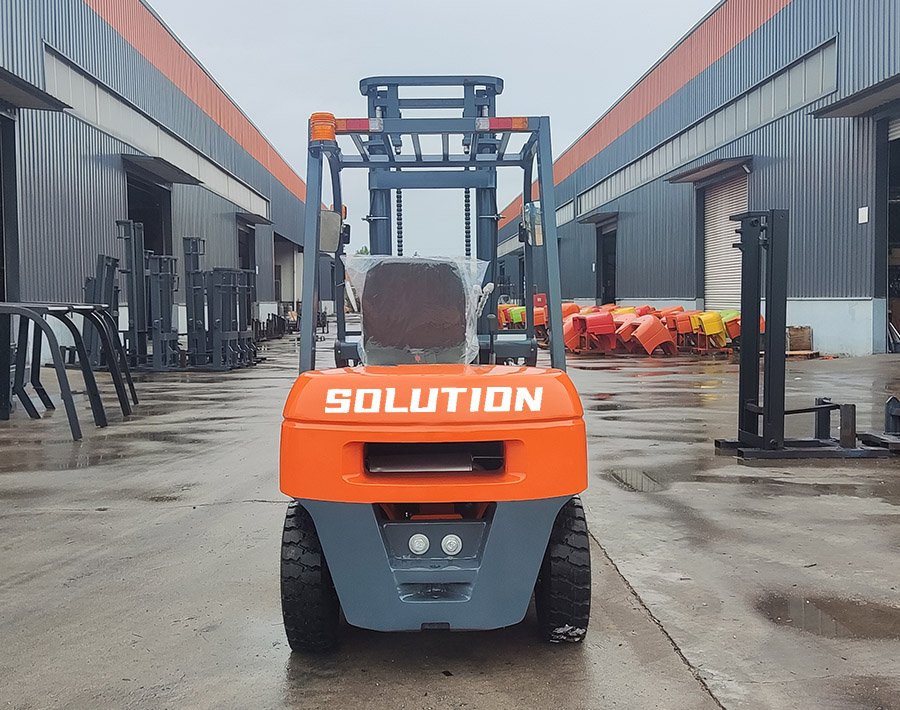

3 tons Forklift

Engineering
Machinery

3 tons Forklift

Certification icon

Inquire now

Product details

Model		CPC15	CPC20	CPC25	CPC30	CPC35	CPCD50	CPCD60	CPCD70	CPCD80	CPCD100
Power		Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Rated lifting load	KG	1500	2000	2500	3000	3500	5000	6000	7000	8000	10000
Load center distance	MM	500	500	500	500	500	600	600	600	600	600
Driving mode		Seat driving	Seat driving	Seat driving	Seat driving	Seat driving	Seat driving	Seat driving	Seat driving	Seat driving	Seat driving
Length	MM	3180/2260	3590/2520	3650/2580	3930/2690	3930/2690	4690/3510	4720/3590	4810/3680	5175/3955	5497/4277
Width	MM	1090	1170	1170	1210	1210	1970	1970	1970	2245	2245
Height	MM	2090	2110	2070	2100	2100	2500	2500	2500	2570	2570
Fork size		92010035	107010045	107010045	107010045	107010050	1220x150x60	1220x150x60	1220x150x65	1520x170x70	1520x175x85
Wheelbase	MM	1400	1600	1600	1700	1700	2250	2250	2250	2800	2800
Front overhang	MM	410	460	477	479	479
Rear overhang	MM	425	410	494	520	520
No-load maximum lifting height	MM	110	110	110	110	110	230	230	230	250	250
No-load maximum lifting height	MM	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
Free lifting height	MM	100	150	160	160	160	210	210	210	200	200
Minimum turning radius (outer side)	MM	1950	2300	2240	2240	2240	4080	4120	4180	3755	4150
Mast tilt angle (front/rear)	（°）	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	10°/12°	10°/12°
maximum lifting speed(Full-load/No-load)	mm/s	480/500	500/530	500/530	485/505	485/505	510/530	500/530	500/480	330/350	330/350
maximum working speed(Full-load/No-load)	Km/h	14/15	18/20	17/19	18/20	18/20	24/29	23/29	22/29	20/26	20/26
maximum gradeability(Full-load/No-load)	％	20/21	20/21	20/21	15/20	15/20	15/20	15/20	15/20	15/20	15/20
Forklift weight under standard no-load condition	KG	2900	3400	3500	4200	4450	8400	8900	9600	11800	12410
Tire no. (F/R)		2/2	2/2	2/2	2/2	2/2	4/2	4/2	4/2	4/2	4/2
Tire type (F/R)		Air inflation tire	Air inflation tire	Air inflation tire	Air inflation tire	Air inflation tire	Air inflation tire	Air inflation tire	Air inflation tire	Air inflation tire	Air inflation tire
Tire size (F)		6.5-10-10PR	7.00x12-12PR	7.00x12-12PR	28x9-15	28x9-15	8.25-15-14PR	8.25-15-14PR	8.25-15-14PR	9.00-20NHS	9.00-20NHS
Tire size (R)		5.00-8-10PR	6.00x9-10PR	6.00x9-10PR	6.50-10	6.50-10	8.25-15-14PR	8.25-15-14PR	8.25-15-14PR	9.00-20NHS	9.00-20NHS
service brake		Power brake-pedal	Power brake-pedal	Power brake-pedal	Power brake-pedal	Power brake-pedal	Power brake-pedal	Power brake-pedal	Power brake-pedal	Power brake-pedal	Power brake-pedal
Brake brake		Machenical-manual	Machenical-manual	Machenical-manual	Machenical-manual	Machenical-manual	Machenical-manual	Machenical-manual	Machenical-manual	Machenical-manual	Machenical-manual
Engine model		XINCHAI C490	XINCHAI C490	XINCHAI C490	XINCHAI C490	XINCHAI C490	XINCHAI CA6110	XINCHAI CA6110	XINCHAI CA6110	XINCHAI CA6110	XINCHAI CA6110
