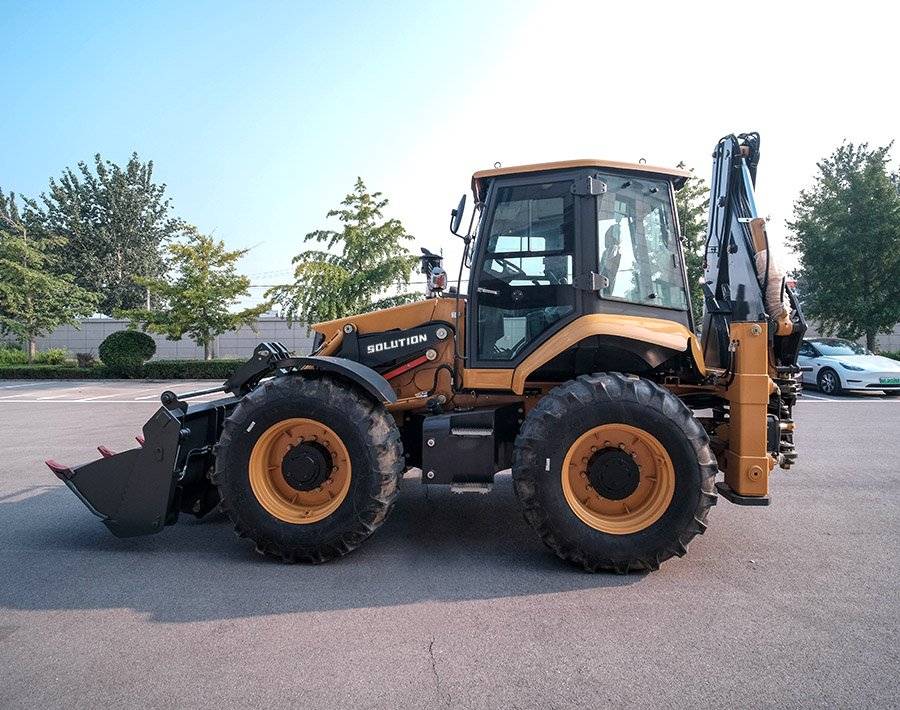

SLB88 4CX

Engineering
Machinery

SLB88 4CX

Certification icon

Inquire now

Product details

整体性能/型号Overall Performance/Model		SLB86	SLB86N	SLB88
整体性能/型号Overall Performance/Model			3CX	4CX
整机性能General Machine Performance
尺寸Dimension(LxWxH)	mm	615023503763	615023503763	650025003800
轴距Wheelbase	mm	2200		2250
轮距Wheel Track	mm	1850/2000		2050
离地间隙Ground Clearance	mm	300		400
最小转弯半径Min Turning Radius	mm	6580		4200
系统压力System Pressure	Mpa	20	28
总重Total Weight	KGS	8500		9500
最高行驶速度Top Speed	KM/H	22-35		38
最大爬坡能力Max Gradeability	*o	35
变速箱transmission		自动挡auto
驱动转向型式Drive steer mode		442		444
变矩器Hydraulic Torque Converter		280		300
轮胎Tyre		14-17.5/19.5L-24		16.9-28-14
驾驶制动Driving Brake		空气-油卡钳盘式制动器Air-over-Oil Caliper Disc Brake
手刹Handbrake		机械制动器Mechanical brake
油箱容量Fuel Tank Level	L	100		150
Hydraulic Oil Tank Level	L	100		150
后挖掘装置backhoe
最大挖掘深度Max Digging Depth	mm	5200		5300
最大挖掘半径	mm
后挖卸载高度Excavation Unloading Height	mm	5300		4450
最大挖掘距离Max Digging Reach	mm	7100
最大起升高度Max Lifting Height	mm	7200		6100
铲斗容量Bucket Capacity	m3	0.3
最大挖掘力Max Digging Force	KN	36	40
最大铲斗半径Max bucket radius	mm	840
挖掘机摆角Excavator Swing Angle	*0	190
前铲臂Front loader
最大卸货高度Maxi Unloading Height	mm	2500
最大卸货距离Max Unloading Distance	mm	1062		800
铲斗容量Bucket Capacity	m3	1
额定负载能力Rated Load Capacity	KGS	2500
提升力(KN)Lifting Force(KN)	KN	38
引擎马力engine power
型号Model		玉动YUDONG4105 Turbo		玉柴YUCHAI4105Turbo
额定功率Rated Power	KW/HP/CC	85/114/4330		75kw/100/4200
额定速度Rated Speed	r/min	2400		2200
气缸容积直径of Cylinders-Bore Diameter		4-105
Type of fuel		柴油Diesel oil
燃油消耗Fuel consumption	L/h	≤4.6		≤4.4

SUPPORTING ATTACHMENTS

SLB86N 3CX

SLB88 4CX
